Product image

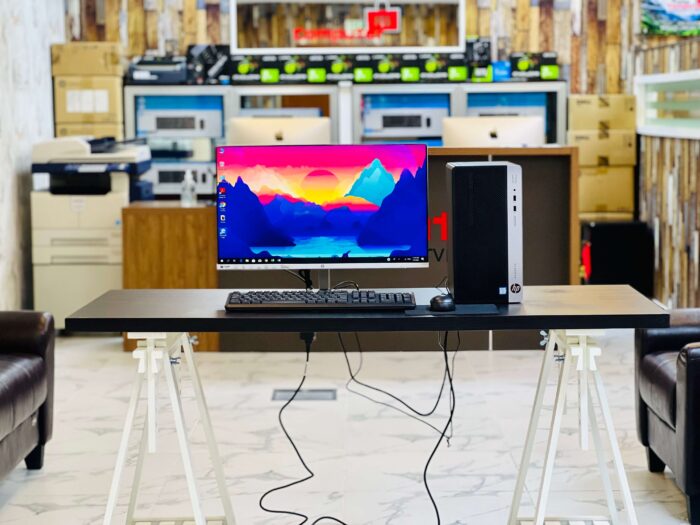

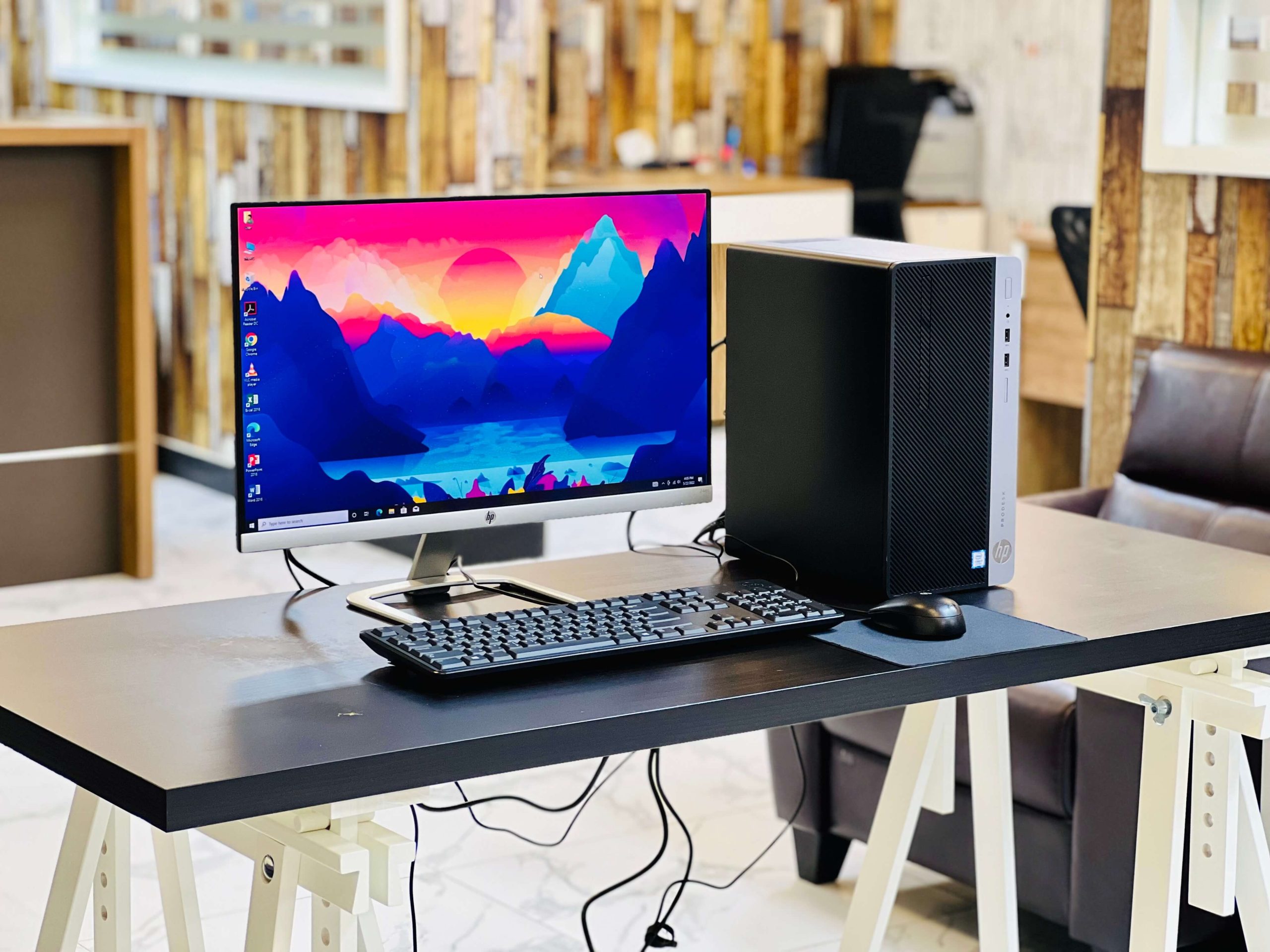

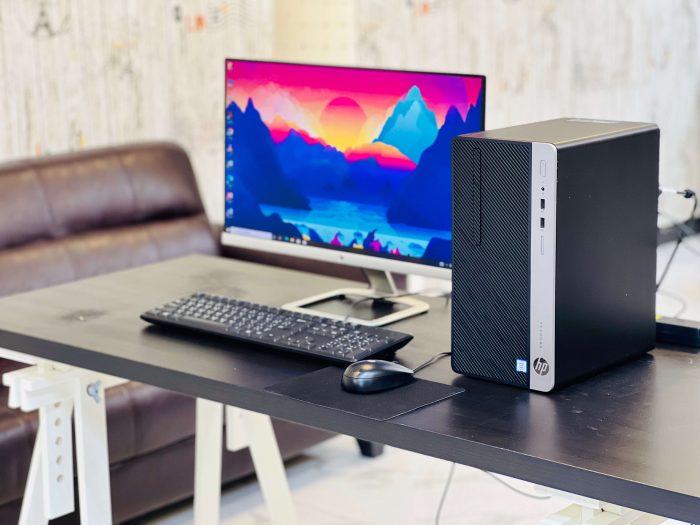

Figure : HP ProDesk 400 G5 Microtower Business PC
Operating systems
|
Specification
|
Description
|
|
Preinstalled (Windows)
|
Windows 10 Pro 64Bit
Windows 10 Pro 64
Windows 10 Home 64
Windows 10 Home Single Language 64
|
|
Preinstalled (Other)
|
Windows 10Pro and Basic Software’s
|
Processors
|
Specification
|
Description
|
|
Intel Core i7-8700 processor
|
65 W
Up to 4.6 GHz maximum Turbo Frequency (3.2 GHz base frequency)
12 MB cache, 6 cores, 12 threads
Intel UHD Graphics 630
DDR4 memory up to 2666 MT/s data rate
|
Memory
|
Specification
|
Description
|
|
DDR4-2666
|
Maximum: 32 GB
Number of slots: (2) DIMM (both slots are customer accessible/upgradeable)
Up to 2666 MT/s
|
Storage
|
Specification
|
Description
|
|
SATA drives
|
500 GB, 7.2 K rpm, SATA 6.0 Gb/s, 6.35 cm (2.5 in)
1 TB, 7.2 K rpm, SATA 6.0 Gb/s, 6.35 cm (2.5 in)
500 GB, 7.2 K rpm, SATA 6.0 Gb/s, 8.89 cm (3.5 in)
1 TB, 7.2 K rpm, SATA 6.0 Gb/s, 8.89 cm (3.5 in)
2 TB, 7.2 K rpm, SATA 6.0 Gb/s, 8.89 cm (3.5 in)
|
|
Solid State Hybrid drives (SSHD)
|
500 GB, 5.4 K rpm, SATA 6.0 Gb/s, 6.35 cm (2.5 in), 8 GB Hybrid
1 TB, 5.4 K rpm, SATA 6.0 Gb/s, 6.35 cm (2.5 in), 8 GB Hybrid
|
|
Self-Encrypting drives (SED HDD)
|
500 GB, 7.2 K rpm, SATA 2.0 (3.0 Gb/s), 6.35 cm (2.5 in), SED Opal 2
500 GB, 7.2 K rpm, 6.35 cm (2.5 in), SED FIPS
|
|
Solid State Drives (SSD)
|
256 GB, SATA 3 (6.0 Gb/s), 6.35 cm (2.5 in), TLC SSD
512 GB, SATA 3 (6.0 Gb/s), 6.35 cm (2.5 in), TLC SSD
256 GB, SATA (6.0 Gb/s), 6.35 cm (2.5 in), TLC SED Opal 2
512 GB, SATA (6.0 Gb/s), 6.35 cm (2.5 in), TLC SED Opal 2
256 GB, SATA (6.0 Gb/s), 6.35 cm (2.5 in), SED FIPS
512 GB, SATA (6.0 Gb/s), 6.35 cm (2.5 in), SED FIPS
|
|
PCIe NVMe TLC SSD drives
|
128 GB M.2 2280 PCIe NVMe SSD
256 GB M.2 2280 PCIe NVMe SSD
512 GB M.2 2280 PCIe NVMe SSD
128 GB M.2 2280 PCIe NVMe TLC SSD
256 GB M.2 2280 PCIe NVMe TLC SSD
512 GB M.2 2280 PCIe NVMe TLC SSD
256 GB M.2 2280 PCIe NVMe Self Encrypted Opal 2 TLC SSD
512 GB M.2 2280 PCIe NVMe Self Encrypted Opal 2 TLC SSD
|
|
Optical disc drives (optional)
|
HP 9.5 mm (0.37 in) Slim DVD-ROM
HP 9.5 mm (0.37 in) Slim DVD-Writer
HP 9.5 mm (0.37 in) Slim Blu-ray Writer
|
|
Media Card Reader (optional)
|
SD 3.0 with 4-in-1 Interface
Supports SD, SDXC, SDHC, UHS-I
|
Ports/slots/bays
|
Specification
|
Description
|
|
Ports
|
Standard
(4) USB 2.0: rear
(4) USB 3.1 Gen 1: (2) front, (2) rear
(1) USB 3.1 Gen 2: (1) rear: optional
(2) PS/2: optional
(1) DisplayPort 1.2 (rear)
(1) VGA (rear)
(1) Headset, front
(1) Audio line-in, rear
(1) Audio line-out, rear
(1) RJ-45 Ethernet
(2) Serial RS-232: optional
(2) PCI Express x1 (v3.0)
(1) PCI Express x16 (v3.0)
(3) SATA ports
|
Keyboards/Mouse
|
Combos
|
HP Business Slim USB Wired Keyboard and Mouse
|
Networking/communications
|
Specification
|
Description
|
|
Ethernet (RJ-45)
|
Integrated
Realtek RTL8111HSH-CG Gigabit Network Gbe Connection (standard)
Optional
Intel Ethernet I210-T1 PCIe x1 Gb Network Interface Card
|
|
Wireless LAN (WLAN) (optional)
|
Intel 9560 802.11ac 2×2 Wi-Fi with Bluetooth M.2 Combo Card non-VPro
Realtek RTL8821CE 802.11ac 1×1 with Bluetooth M.2 Combo Card
Realtek RTL8723DE 802.11b/g/n 1×1 with Bluetooth M.2 Combo Card
|
Audio/multimedia
|
Specification
|
Description
|
|
Type
|
Conexant CX20632 Audio Codec (all ports are stereo)
2 W class D mono amplifier for the internal speaker only
(1) Headset connector supports a CTIA style headset and is retaskable as a Line-in, Line-out, Microphone-in, or Headphone-out port (front)
(1) Line-out (rear)
|
|
Internal speaker (standard)
|
Yes
|
Power supply
|
Specification
|
Description
|
|
80 PLUS Gold
|
180 W active PFC/80 PLUS Gold 87/90/87% efficient at 20/50/100% load (115 V)
310 W active PFC/80 PLUS Gold 87/90/87% efficient at 20/50/100% load (115 V)
|
